EDI Ultrapure Water
Industrial EDI Ultrapure Water Treatment System | Custom Electrodeionization Equipment
High Purity
Industrial Grade Output
Customizable
Tailored to Your Needs
Full Support
Design to After-Sales
Product Introduction
The Industrial EDI Ultrapure Water Treatment System is designed for the continuous production of high-purity and ultrapure water. Electrodeionization technology uses ion-exchange resin, ion-selective membranes and a DC electric field to continuously remove residual ions from reverse osmosis permeate.
Depending on the RO feed-water quality and system configuration, the EDI water treatment system can produce water with a resistivity of approximately 16–18 MΩ·cm at 25°C. It provides stable product-water quality without the acid and alkali regeneration required by conventional mixed-bed ion exchange systems.

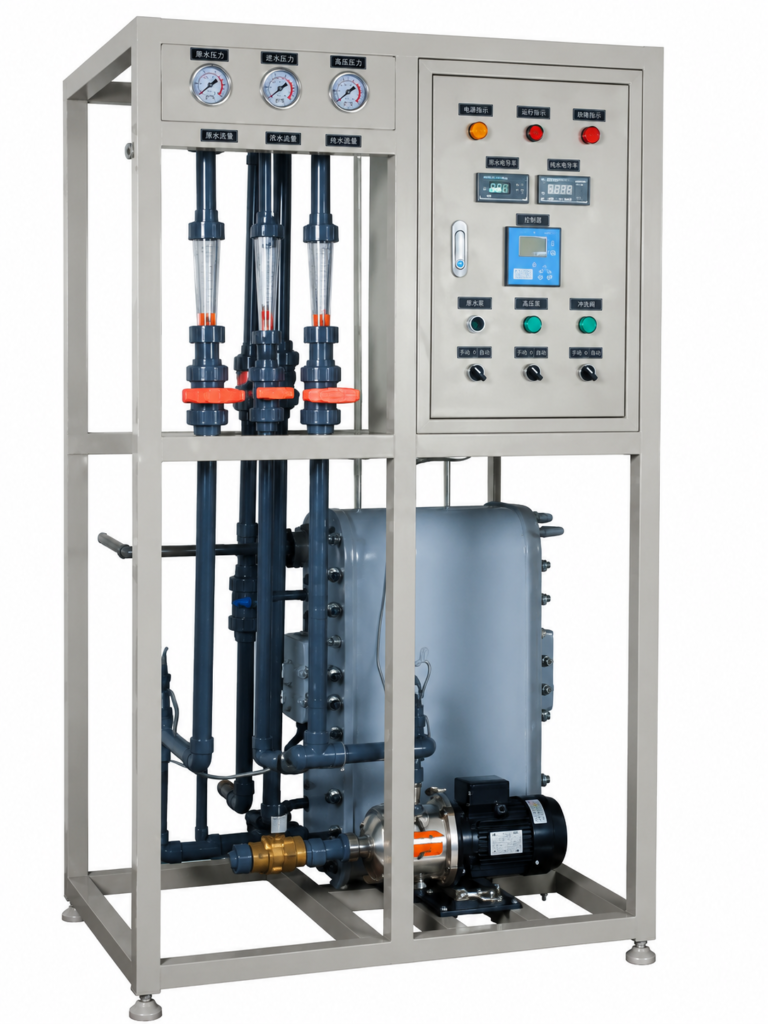

The compact skid-mounted unit integrates an EDI module, flow meters, pressure monitoring, circulation pump, piping and an electrical control panel. Manual, semi-automatic and fully automatic control configurations are available for continuous operation and convenient performance monitoring.
This industrial ultrapure water system is suitable for electronics manufacturing, pharmaceutical production, laboratories, power generation, precision cleaning and other processes requiring low-conductivity or high-resistivity water.
Capacity, voltage, EDI module brand, RO pretreatment, polishing stages, frame material, piping, control system, instruments, equipment dimensions and OEM branding can be customized according to the customer’s raw-water analysis and target-water standard.

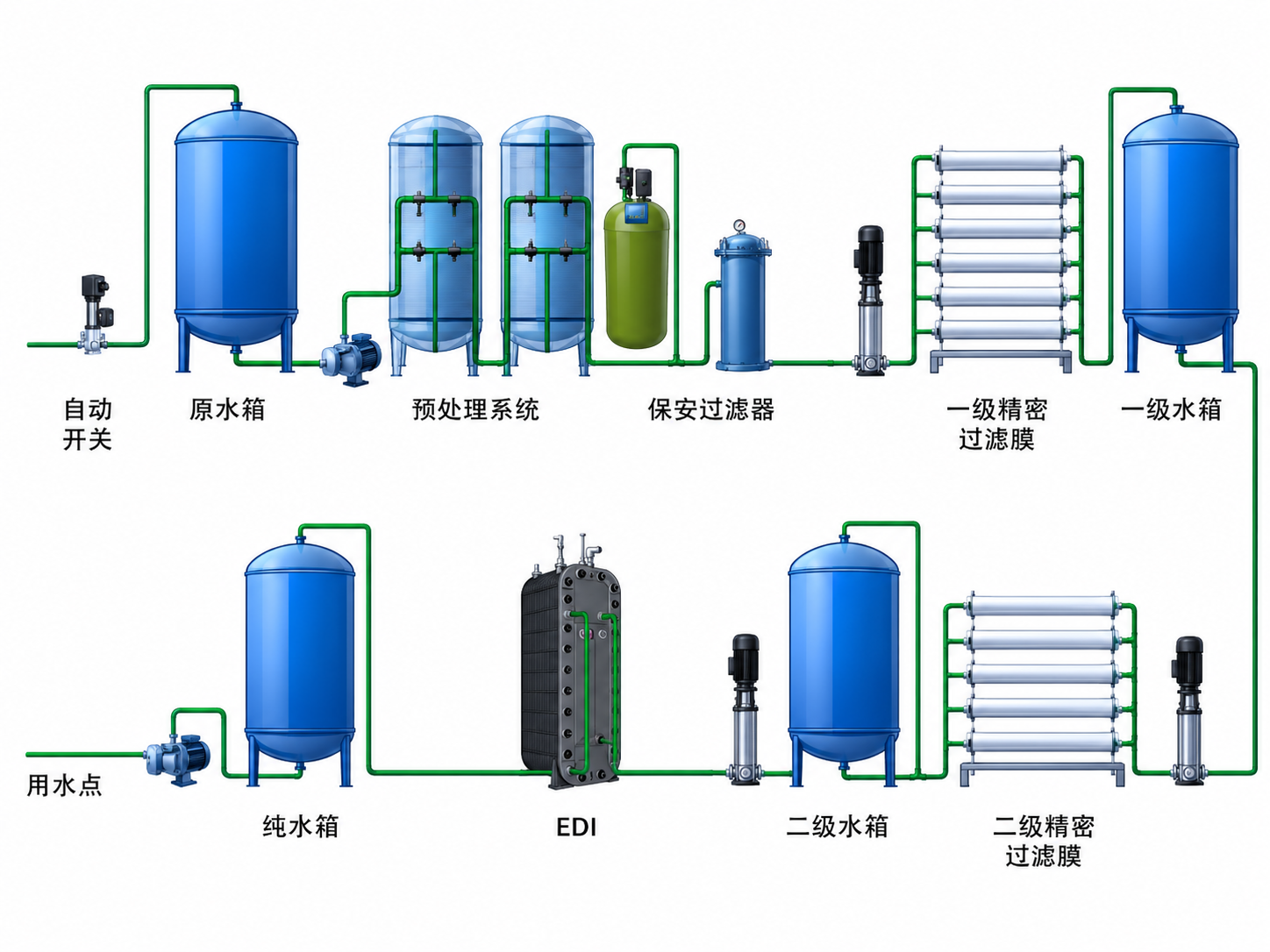

For reliable performance, EDI is normally used as a polishing stage after reverse osmosis. The final RO-EDI process should be selected according to feed-water conductivity, hardness, silica, carbon dioxide and the required product-water quality.
Depending on the RO feed-water quality and system configuration, the EDI water treatment system can produce water with a resistivity of approximately 16–18 MΩ·cm at 25°C. It provides stable product-water quality without the acid and alkali regeneration required by conventional mixed-bed ion exchange systems.
The compact skid-mounted unit integrates an EDI module, flow meters, pressure monitoring, circulation pump, piping and an electrical control panel. Manual, semi-automatic and fully automatic control configurations are available for continuous operation and convenient performance monitoring.
This industrial ultrapure water system is suitable for electronics manufacturing, pharmaceutical production, laboratories, power generation, precision cleaning and other processes requiring low-conductivity or high-resistivity water.
Capacity, voltage, EDI module brand, RO pretreatment, polishing stages, frame material, piping, control system, instruments, equipment dimensions and OEM branding can be customized according to the customer’s raw-water analysis and target-water standard.
For reliable performance, EDI is normally used as a polishing stage after reverse osmosis. The final RO-EDI process should be selected according to feed-water conductivity, hardness, silica, carbon dioxide and the required product-water quality.
Request a Custom Quote
Tell us your requirements and our engineers will respond with a tailored solution within 24 hours.
